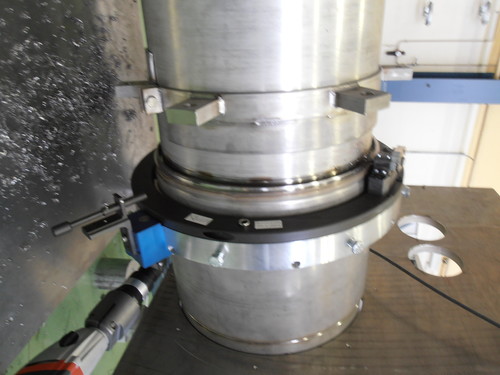

  • TTNG-LW508 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes ranging from 12" à 20"

TTNG-LW508 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes ranging from 12" à 20" TTNG-LW508

TTNG-LW508 - Splitframe Orbital Tube Cutting & Beveling Clamshell  for pipes ranging from 12

323.9 mm (12.75") ID
508 mm (20.00") OD

The machining capacity of the TTNG-LW508 is 323.9 mm (12.751") to 508 mm (20"). These machines are the low profile version of the TTNG range. They are mobile and can be opened in 2 halfshells

Technical Features

TTNG-LW508
  • 508 mm (20.00")
  • 323.9 mm (12.75")
  • 508 mm (20.00")
  • 323.9 mm (12.75")
Data sheet
Dimensions
