  • TTSNG193 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 114 to 193 mm

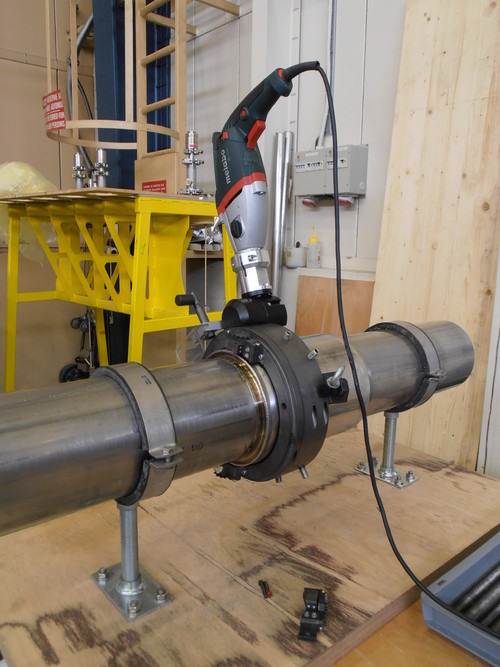

TTSNG193 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 114 to 193 mm TTSNG193

TTSNG193 - Splitframe Orbital Tube Cutting & Beveling Clamshell  for pipes from 114 to 193 mm

114.3 mm (4.50") ID
193 mm (7.60") OD

The machining capacity of the TTSNG193 is 114.3 mm (4.5") to 193 mm (7.598"). The TTS splitframes can be driven either pneumatically or electrically. In line or right angle drive available.

Technical Features

TTSNG193
  • 193 mm (7.60")
  • 114.3 mm (4.50")
  • 193 mm (7.60")
  • 114.3 mm (4.50")
Data sheet
Dimensions
