  • TTSNG141 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 73 to 141 mm

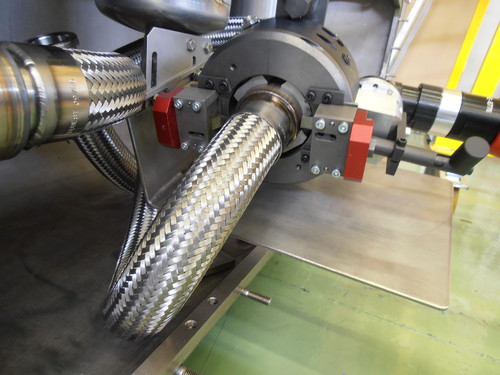

TTSNG141 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 73 to 141 mm TTSNG141

TTSNG141 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 73 to 141 mm

73 mm (2.87") ID
141.3 mm (5.56") OD

The machining capacity of the TTSNG141 is 73 mm (2.874") to 141.3 mm (5.563"). The TTS splitframes can be driven either pneumatically or electrically. In line or right angle drive available.

Technical Features

TTSNG141
  • 141.3 mm (5.56")
  • 73 mm (2.87")
  • 141.3 mm (5.56")
  • 73 mm (2.87")
Data sheet
Dimensions
